KCW Series
Weldable gages – do not require any coating treatment for use under high pressure or under water
Order on request
These products are requested only from ZSE. Our employees will contact you as soon as possible with an offer.
Order on request
This product is ordered on request!
An account at myZSE gives you the opportunity to order this product directly.

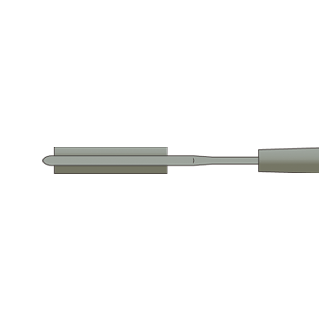

The KCW foil strain gage are weldable gage, which does not require any coating treatment for use under high pressure or under water. They are available in 2 types: G10 with 1 gage and G14S with 4 gages. The G10 type endures a water pressure of approximately 10 MPa.
Specifications
- Materials Resistive element
-
NiCr alloy foil
- Materials Base
-
Stainless steel
- Operating temperature in combination with major adhesives after curing
-
Spot welding: -20 to 100 ºC
°C
- Operating temperature in combination with major leadwire cables
-
Chloroprene wires: -20 to 100 ºC
°C
- Compensated Temperature Range
-
10 –
90
°C
- Applicable linear expansion coefficients
-
11.0
- waterproof
-
ja
KCW-G14 – Fillbridge Strain Gage
