LXRS® Wireless Sensor Networks enable simultaneous, high-speed sensing and data aggregation from scalable sensor networks. These wireless sensing systems are ideal for test and measurement, remote monitoring, system performance analysis,and embedded applications.

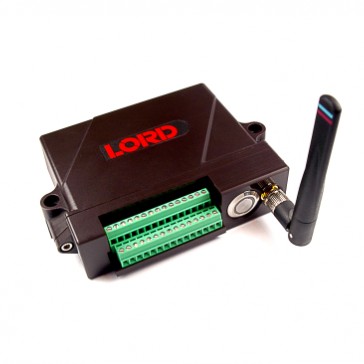

V-Link-200 Highlights:
- Four differential and four single-ended analog input channels and an internal temperature sensor
- Ideal for remote and long-term measurement of Wheatstone bridge and analog-type sensors such as strain, force, pressure, acceleration and vibration
- Continuous, periodic burst, event-triggered, and datalogging sampling modes with user-programmable sampling rates up to 8 KHz
- Field-replaceable, extended-life battery operation or wide range 7.5-36 V dc external power
- Ruggedized housing with optional IP67 faceplate
- Bolt-down or DIN-rail mounting
Features:
- High Performance
- Lossless data throughput and node-to-node sampling synchronization of ±32 μS in LXRS®-enabled modes
- High resolution data with 18-bit A/D converter
- Measurement range:
Differential: ±1.22 mV to ±156 mV, full-bridge, ≥ 120Ω, (optional internal ¼- or ½-bridge completion)
Single-ended: ±10.24 V - Bridge excitation: +4.096 VDC (max. 150 mA)
- User-programmable anti-aliasing filter: 128 to 4000 Hz
- Wireless range up to 1.5 km (500 m typical)
- Build in datalogger, storage capacity 16 M Bytes (more than 5 million data points)
- Operating Parameters: Operating temperature: -40°C to +85°C / Acceleration limit: 100g
- Ease of Use & Scalable networks for easy expansion
- Remote configuration, acquisition, and display of sensor data with SensorConnect™
- Optional web-based SensorCloud™ platform optimizes data storage, viewing, alerts, and analysis
- Easy custom integration with open-source, comprehensive communications and command library
- Cost Effective: Reduction of costs associated with wiring
- Low-cost per channel with 8 input channels per node
