6-component Force Measuring System
Order on request
These products are requested only from ZSE. Our employees will contact you as soon as possible with an offer.
Order on request
This product is ordered on request!
An account at myZSE gives you the opportunity to order this product directly.
High Reliability, High Accuracy, and Slip Ring Signal Transmission
- Thin and lightweight sensor
- The sensor using slip rings ensure easy handling
- Signal processors for four wheel are info one unit.
- A high-speed DSP improves the processing capability.
- Dedicated signal processor contains an indicator which is easy to view in the field with a user-friendly remote controller.

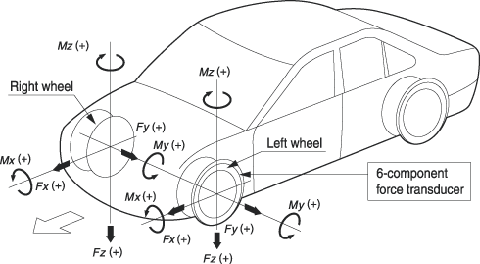

This system enables measurement of 3 forces (Fx, Fy, Fz) acting on 3 orthogonal axes to the running axle at the wheel mounting part and 3 moments (Mx, My, Mz) around the axes. The wheel itself is made to act as the sensor to detect the 6-component force and output signals are transmitted by the Slip-ring to the measuring instrument.
Specifications
- Number of channels
-
8 I
- Rated Output
- 10 VI
- Rated Capacity
-
Load Fx (Longitudinal force) : ±20 kN
Load Fy (Lateral force) : ±12 kN
Load Fz (Vertical force) : ±20 kN
Torque Mx (Yaw moment) : ±2.4 kN·m
Torque My (Torque) : ±4.0 kN·m
Torque Mz (Roll torque) : ±2.4 kN·m
Rotary Speed N (Rotary Speed) : ±2000 rpm
*For other rated capacity, please contact us.
- data-processing
-
Real-time processing
Converts data into physical quantities of the still coordinate system and outputs voltages.
- Installationsmethode
-
Using the hub adapter to install sensors.
Various PCD are applicable by changing wheel adapters.
