Dynalabs permanent magnet shakers are compact, lightweight and powerful general-purpose shakers which can be used for modal and vibration testing. They have high DUT capacity despite their small sizes. DYN-PM-20 and PM-100 has an integrated amplifier and a sine wave signal generator where the frequency can be adjusted from 1 Hz to 15,000Hz.
Advantages:
- Lightweight, durable, portable and easy to use
- Adjustable trunnion base provides high degree of flexibility
- Broad frequency range
- Embedded power amplifier and signal generator for PM-20 and PM-100
Your search returned no results.
PM-10
Permanent Magnet Shaker / 10 N
External Amplifier incl. Sine-Generator and Display
- Output Force (Sinus)
-
10 N
- Output Force (Shock)
-
20 N
- Typical Frequency Range
-
0 – 10000 Hz
- Payload
-
0.40 kg
- Displacement
-
4 mmI
- Peak Acceleration
-
50 gI
Request
S
PM-20
Permanent Magnet Shaker / 20 N
Integr. Sine-Generator, Display and Amplifier
- Output Force (Sinus)
-
20 N
- Output Force (Shock)
-
40 N
- Typical Frequency Range
-
0 – 12000 Hz
- Payload
-
0.80 kg
- Displacement
-
5 mmI
- Peak Acceleration
-
40 gI
Request
S
PM-100
Permanent Magnet Shaker / 100 N
Integr. Sine-Generator, Display and Amplifier
- Output Force (Sinus)
-
100 N
- Output Force (Shock)
-
200 N
- Typical Frequency Range
-
0 – 7500 Hz
- Payload
-
1.50 kg
- Displacement
-
10 mmI
- Peak Acceleration
-
60 gI
Request
S
PM-250
Permanent Magnet Shaker / 250 N
incl. Amplifier
- Output Force (Sinus)
-
250 N
- Output Force (Shock)
-
500 N
- Typical Frequency Range
-
0 – 5000 Hz
- Payload
-
2 kg
- Displacement
-
25 mmI
- Peak Acceleration
-
100 gI
Request
S
PM-440
Permanent Magnet Shaker / 440 N
incl. Amplifier
- Output Force (Sinus)
-
440 N
- Output Force (Shock)
-
880 N
- Typical Frequency Range
-
0 – 5000 Hz
- Payload
-
2.50 kg
- Displacement
-
25 mmI
- Peak Acceleration
-
100 gI
Request
S
D
PM-ST
Slip Table for PM-250 and PM-440
Request
S

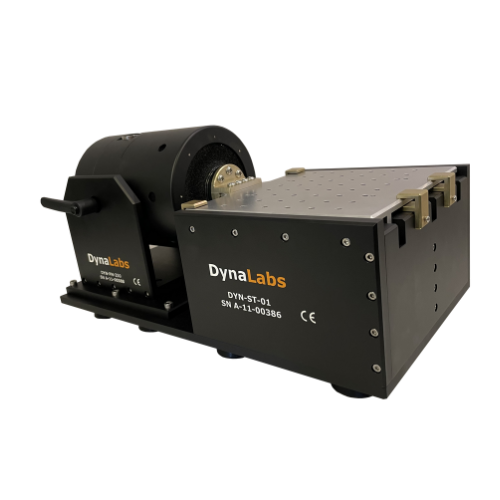

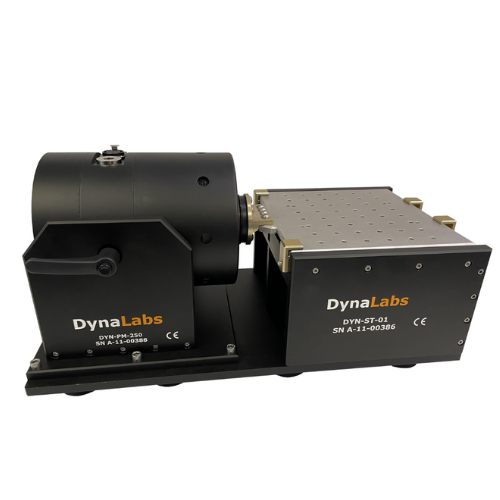

PM-ST
Slip Table for PM-250 and PM-440
In some cases, it is not enough to be able to test on the vertical axis. Therefore, Dynalabs started to manufacture slip table to increase shaker’s test capability of horizontal direction. Slip table allows horizontal axial vibration test.
Slip table (20 cm x 21.4 cm) is designed for 250 N and 440 N PM shakers which will assembled to the slip table.
DYN-ST has light weight magnesium slip plate and magnetic linear joints. These features result in long-term reliability and durability.
The shaker can also be separated from the slip table and rotated to the vertical position. Thus, shaker can be used in a normal vibration testing set-up.
S
D
PM-HE
Head expander for PM-250 and PM-440
Request
S
PM-HE
Head expander for PM-250 and PM-440
Head expander is designed for PM-250 and PM-440 Dynalabs shakers. PM-HE provides broader mounting surface so that test objects will be larger which will be attached directly to the shaker platform.
PM-HE structure is magnesium. Thus, it has high strength-to-weight ratios. Based on these features PM-Head Expander increases shaker testing capabilities and provides shakers to be used in more diverse applications.
S
D
PM-MA
Stinger adapter for PM Shaker
Request
S
PM-MA
Stinger adapter for PM Shaker
S
MS-ST
Stinger set
No test specimen is mounted on Modal Shakers. Modal shakers are mounted to the structure with stinger and force is transferred from the shaker to the structure via this stinger. Stinger prevents interaction between structure and shaker.
Stinger is essentially a thin, flexible rod that improves the accuracy of modal testing by transmitting force in the axial direction to the force sensor or impedance head. Thanks to its lateral flexibility, it also protects both the DUT and the modal shaker from critical forces.
All modal shaker packages include one stinger set. In this set, there are 2mm, 2.4mm, 3.2mm long stinger rods, collets and nuts.
