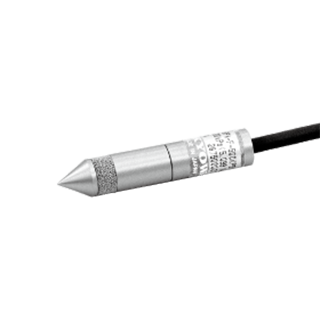

BPA-F-S – Very small sized Pore Pressure Transducers
(200 & 500 kPa) Ø only 10mm, for liquefaction tests
Order on request
These products are requested only from ZSE. Our employees will contact you as soon as possible with an offer.
Order on request
This product is ordered on request!
An account at myZSE gives you the opportunity to order this product directly.
Featuring an outer diameter of 10 mm, the BPA-F-S series pore pressure transducers are suitable for indoor model experiments such as liquefaction tests. Cone or flat tip type can properly be used according to the test condition.
Features:
- Rated Capacity: 200 kPa & 500 kPa
- Small-sized, 10 mm in diameter
- Watertight design enabling embedment applications for short-term experiments
- Suitable for indoor experiments such as liquefaction tests
- Cone or flat tip type can be used properly.
Standard Accessories:
- Cone type Filter: 40 µm and 100 µm
- Flat type Filter: 40 µm and 100 µm
- Cone filter fixture
- Flat filter fixture
Specifications
-
- rated-capacity-t
-
8
t
-
-
-
- Rated Output
-
1.0 mV/V (2000 x 10-6 strain)
t
- Rated Capacity
-
1
t
- Nonlinearity
-
±0.5
MPa
-
- Channels
-
4
Your search returned no results.
BPA-F-200KPS
- Rated Capacity
-
200
kPa
- Rated Output
-
0.85
mV/VI
- Nonlinearity
-
±0.5
% RO
Request
S
BPA-F-500KPS
- Rated Capacity
-
500
kPa
- Safe Overloads
-
100
%
- Withstand Water Pressure
-
500
kPa
-
Request
S
