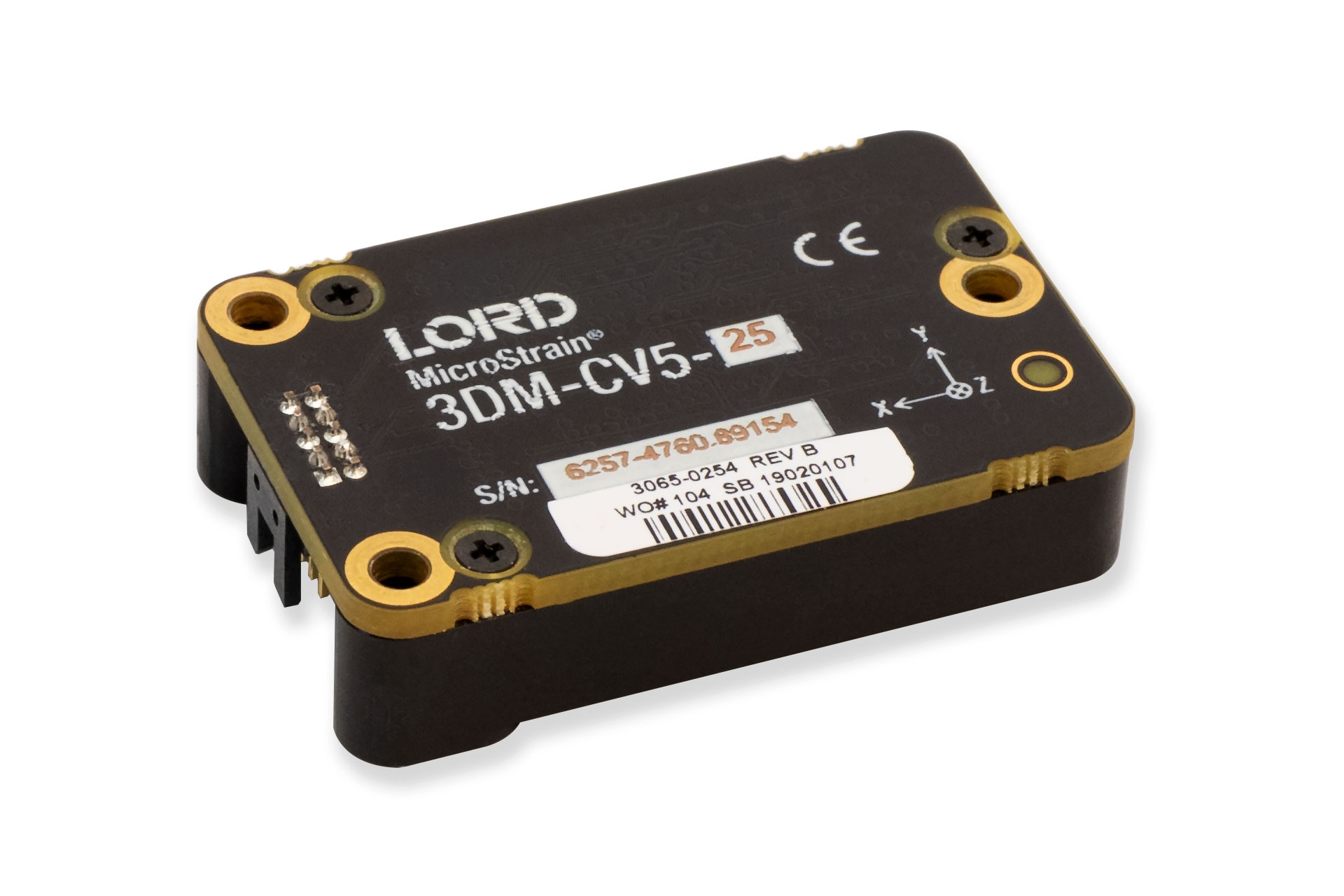

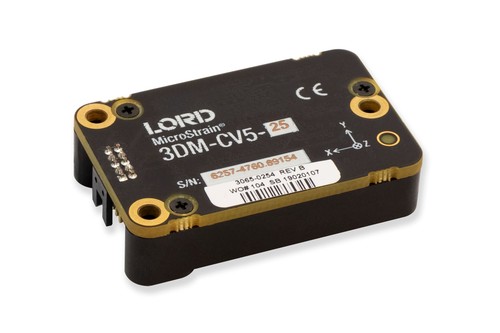

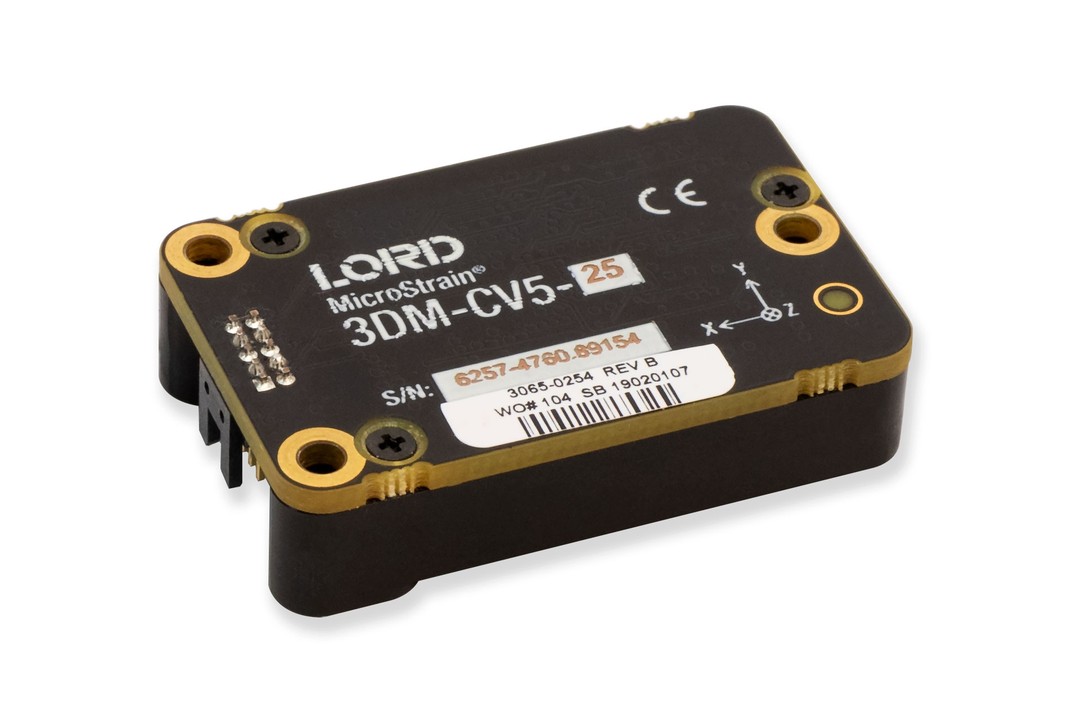

The LORD Sensing 3DM-CV5 family of industrial-grade board-level inertial sensors provides a wide range of triaxial inertial measurements and computed attitude and navigation solutions.
In all models, the Inertial Measurement Unit (IMU) includes direct measurement of acceleration and angular rate, and are fully temperature-compensated and calibrated over the operating temperature. The use of Micro- Electro- Mechanical System (MEMS) technology allows for highly accurate, small, lightweight devices.
The LORD Sensing MIP Monitor software can be used for device configuration, live data monitoring, and recording. Alternatively, the MIP Data Communications Protocol is available for development of custom interfaces and easy OEM integration.
Product Highlights:
- Triaxial accelerometer, gyroscope, and temperature sensors achieve the optimal combination of measurement qualities
- Smallest, lightest, highest performance IMU in its class
- 3 different models available:
- 3DM-CV5-10 - Inertial Measurement Unit
- 3DM-CV5-15 - Vertical Reference Unit with Auto-Adaptive Extended Kalman Filter (EKF)
- 3DM-CV5-25 - AHRS with Auto-Adaptive Extended Kalman Filter (EKF) and Auto Magnetometer Calibration
Best in Class Performance:
- Fully calibrated, temperature-compensated, and mathematically-aligned to an orthogonal coordinate system for highly accurate outputs
- High-performance, low-cost solution
- Direct PCB mount or chassis mount with ribbon cable
- Precision mounting alignment features
Ease of Use:
- Easy integration via comprehensive and fully backwards-compatible communication protocol
- Robust, forward compatible MIP packet protocol
Cost Effective:
- Out-of-the box solution reduces development time
- Volume discounts
