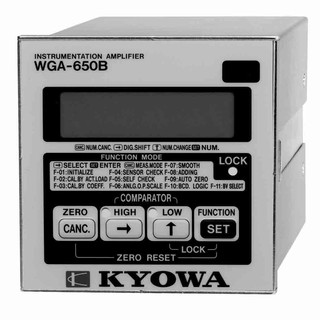

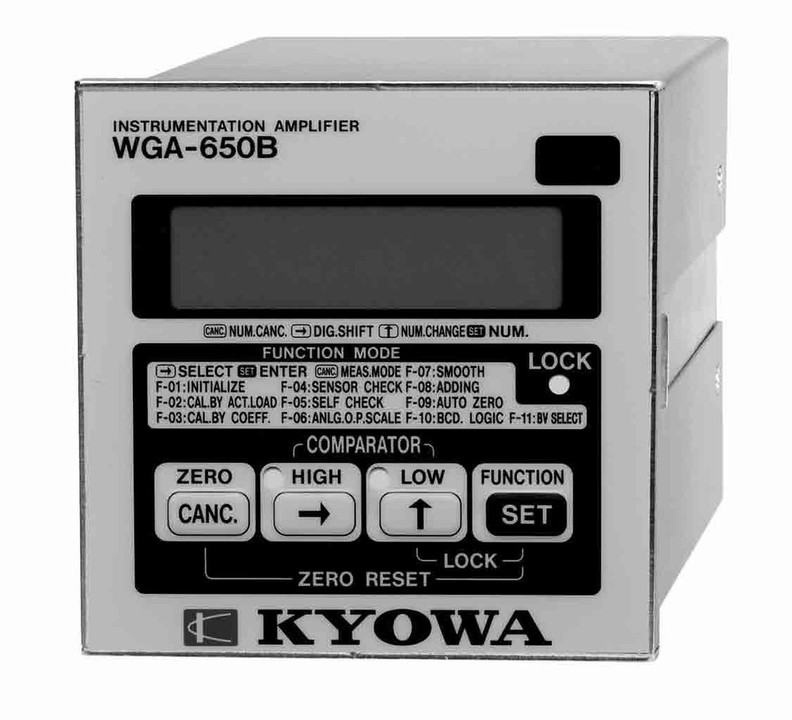

The WGA-650B series is a compact, low price instrumentation amplifier enabling direct reading of physical quantities such as loads e.t.c. in combination with a strain gage transducer.

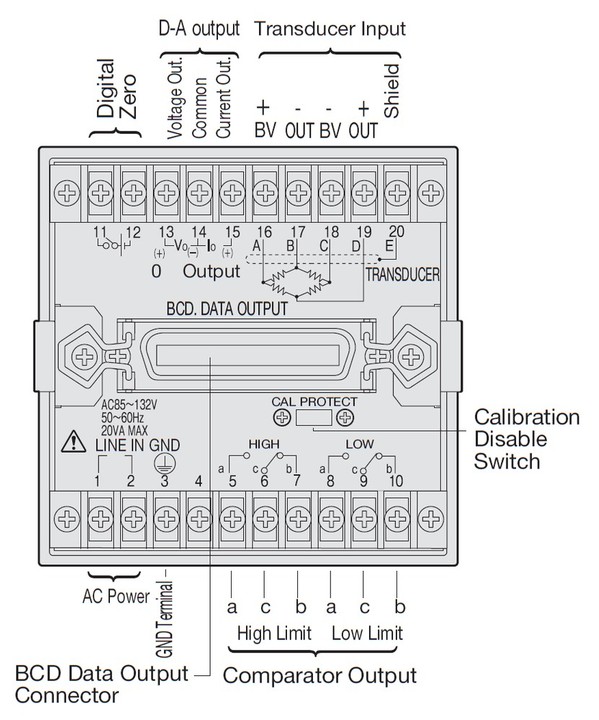

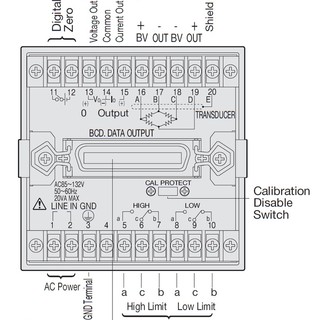

All operations can be performed with front-panel keys including high/low limit comparator keys. While all models in this series provide D-A converted signal output, models with additional digital output (BCD) are available.
Features:
Wide no-load zero adjustment range (±2mV/V)
High/low limit comparator (relay contact output)
Indicated value can be output in a voltage range of 0 to 10 V or in a current range of 4 to 20 mA
Indication range -1999 to 19999
DIN size (96 x 96 mm) ensures easy installation.
Up to 4 transducers with 350O bridge resistance can be connected in parallel.
Spezifikationen
Kanäle
1
applicable-transducers
Strain-gage transducers (Bridge resistance of 350Ω) (Up to 4 transducers connectable in parallel)
Messbereich
0 to 2.5 mV/V (5000 ×10-6 strain)
Brückenspeisespannung
10 VDC/2 VDCI
Kalibrierung
By inputting a numeric value By applying an actual load
Nichtlinearität
Within ±(0.03% FS + 1 digit) % FS
Betriebstemperatur
-10 – 50 °C
Betriebsluftfeuchtigkeit
20 – 85 % RHI
Abmessungen
96x 139 x 96 mmI
Gewicht
1,30 kg
Standard Zubehör
AC power cable P-23 (For 100 VAC) Instruction manual Unit seal
Kabelverlängerung für Wägezelle und Integration mehrerer Wägezellenausgänge in einem einzigen Kabel
A junction box is used when connecting a load cell and amplifier using an extension cable, or when connecting cables of multiple load cells, weighing a tank or hopper, to an amplifier using a single cable.
The SJB-C/D are designed for general purposes, for use under non hazardous and explosive environments.
Kabelverlängerung für Wägezelle und Integration mehrerer Wägezellenausgänge in einem einzigen Kabel
A junction box is used when connecting a load cell and amplifier using an extension cable, or when connecting cables of multiple load cells, weighing a tank or hopper, to an amplifier using a single cable.
The JBS-C is designed for use under hazardous and explosive environments.
Cable Diameter: 10 to 11 mm (Please specify the cable diameter)
KYOWA ELECTRONIC INSTRUMENTS CO., LTD. ist ein japanisches Unternehmen, das bereits seit 1951 alle Kernelemente der industriellen Dehnungsmesstechnik abdeckt.
