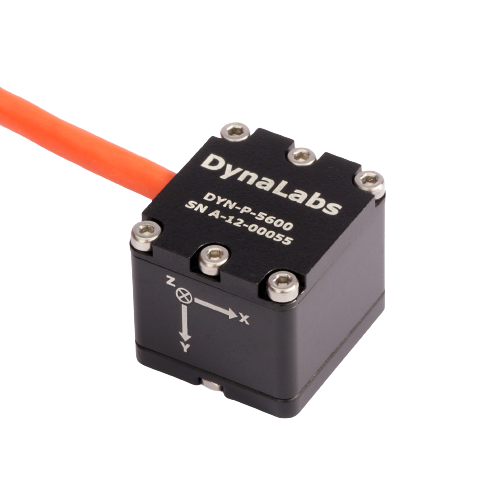

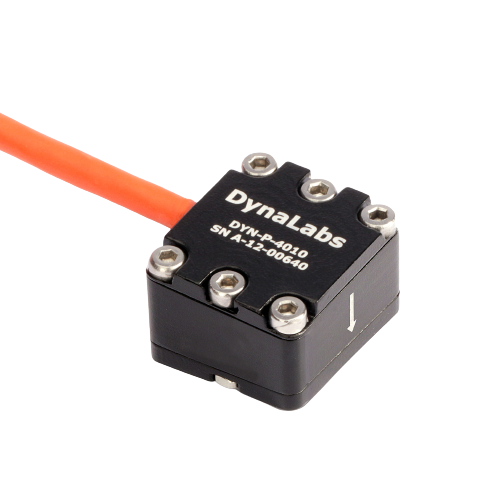

Piezoresistive sensors are used in high impact and shock applications with very high accelerations. These accelerometers are build from lightweight aluminum housings.
Low cost sensors
Uni- and Triaxial Models available
Available measurement Ranges: ±100, ±200, ±500, ±2000, ±6000 g
Frequency range (±5%): 1200 ... 5000 Hz
Shock survivability: 5000g (6000g Model: 10000g)
Accurate DC Measurement
High shock protection
Wheatstone bridge
IP68 Protection Level
Operating Voltage: 10 V – 20 V
Operating Temperature: -40 °C to +100 °C
Stainless steel or lightweight aluminum housing for adhesive or screw mounting
