High resolution 0.1μm/m, max measuring channels 1000
Order on request
These products are requested only from ZSE. Our employees will contact you as soon as possible with an offer.
Order on request
This product is ordered on request! An account at myZSE gives you the opportunity to order this product directly.
Can measure up to 20000 µm/m with a resolution as high as 0.1 µm/m

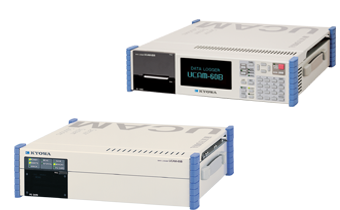

The data logger UCAM-60B is an all-in-one measuring instrument developed in full pursuit of easier field measurement.
Easy-to-operate keys, a bright readable display providing understandable presentation and a printer for immediate confirmation of measurement results. All these and more are incorporated in this compact unit to satisfy every need in field measurement.
The UCAM-65B is a compact online data logger fully controlled through the PC. Both models can connect to, and simultaneously input signals from, strain gages, strain gage transducers, civil engineering transducers with temperature measuring function, potentiometer sensors, thermocouples and DC voltage-output instruments.
They are also compatible with TEDS-installed sensors having information conforming to IEEE template No. 33. While measurement in a maximum 30 channels is possible with the mainframe only, external scanners enable measurement in a maximum 1000 channels. Measured results are stored in internal memory. And for easy data transfer to PC, measured results can also be saved in a flash ATA card or CF card inserted into the PC card slot. Furthermore, Ethernet LAN and RS-232C interfaces are provided standard for connection to the PC, and the control software UCS-60B enables the PC to not only control the UCAM-60B/65B but also perform data processing for rosette analysis, etc. in the field by directly collecting data.
Features: UCAM-60B
Easy-to-understand English user interface
Fluorescent display tube ensuring easy viewing in the field
Built-in thermal printer for immediate confirmation of measured results
Features: UCAM-65B
Setting measuring conditions from PC and saving measured results to PC
Interval measurement possible with no PC connected
Common features to UCAM-60B and UCAM-65B:
Measurement up to 20000 um/m with a resolution of 0.1 um/m
Scanning at 50 ms/channel with internal scanners
High-speed scanning at 20 ms/channel with internal scanners
Up to 30-channel measurement with internal scanners
Up to 1000-channel measurement with external scanners
PC card slot ensuring easy data collection
DC-operated version for operation where no AC outlet is avalaible
Can automatically set the gage mode for each channel by detecting the channel mode corresponding to the connected strain gage or strain gage transducer.
TEDS compatible (with internal scanner USS-61B/62B/63B mounted; for TEDS, refer to page 8-21)
Control software UCS-60B (optional for UCAM-60B) enables control through PC connected via Ethernet LAN or RS-232C. (When connecting via Ethernet LAN, use a straight cable and LAN hub.)
Products
Your search returned no results.
UCAM-60C M14
Universal data logger with display, keyboard and printer
10 ch scanner unit, Semiconductor relays, Connect to leadwires through by soldering or screwing. One-touch terminal block JT-1A (Optional), TEDS compatible.
10 ch scanner unit with NDIS connectors, Semiconductor relays, Connect to leadwires through either soldering or screwing NDIS connectors One-touch terminal block JT-1A (Optional), TEDS compatible.
10 ch scanner unit for civil engineering measurement, with lightning Arresters, Semiconductor relays, Connect to leadwires by either soldering or screwing. One-touch terminal block JT-1A (Optional), TEDS compatible.
50 ch externals scanner unit, Semiconductor relays

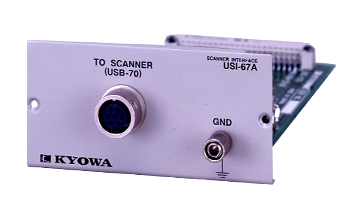

Connectable Data Loggers: UCAM-60B, 65B*Dedicated Scanners USI-67A is required, Connect with USB-70B is possible
Input Terminals: Connect to leadwires through either soldering or screwing
Differential Transformer Types Transducers, 1s/channel
Sliding Resistance Types Transducers, 50 ms/channel
4-pin plug to 2 twisted pair conductors, pre-soldering at the cable tip for MCD-A，MCF-A, ERK-101A, UCAM-60B-DC, 65B-DC, UCAM-60C-DC, 65C-DC, NTB-100 series, NTB-500A, EDX-100A, 200A, EDS-400A, MCA-200A, MRS-111A, Housing Case YC-A
Length
1.80 m
Models
MCD-A，MCF-A ERK-101A UCAM-60B-DC, 65B-DC UCAM-60C-DC, 65C-DC NTB-100 series NTB-500A EDX-100A, 200A EDS-400A MCA-200A, MRS-111A Housing Case YC-A

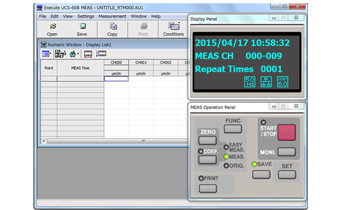

User friendly of control software for data logger.
The UCS-60B enables the PC to control a data logger and to present measured/calculated data on graph and numeric windows, thereby enhancing the performance of the data logger.
Features
Can control UCAM-60B/65B.
Numeric window presenting data in list format
Up to 50 graph windows on display, maximum 20 channels of data per graph
Various data saving formats: Kyowa standard KU1, UCAM-70A, CSV and XLS (Excel format)
Data processing (arithmetic operation, statistic operation and rosette analysis)
Read/write of measuring/calculating condition files
KYOWA ELECTRONIC INSTRUMENTS CO, LTD. is a Japanese company that has been covering all core elements of industrial strain measurement technology since 1951.
